Windows 10 BIOS to UEFI In-place Upgrade Task Sequence using MBR2GPT

At the Midwest Management Summit 2017, I gave a session called Building the Ultimate Windows 10 UEFI Task Sequence. In this session, I covered both types of BIOS to UEFI Task Sequences – Wipe-and-Load and In-place Upgrade. This blog is going to cover the In-place Upgrade version of the BIOS to UEFI Task Sequence. This Task Sequence will use variables that I previously wrote about in the blog posts: BIOS and Secure Boot State Detection during a Task Sequence Part 1 & Part 2, as the goal is to have a single Task Sequence that covers the various scenarios. In addition, this blog also replaces the original blog I wrote, Using MBR2GPT with Configuration Manager OSD, when I first discovered MBR2GPT in one of the Windows Insider builds.

NOTE: See my blog Configuration Manager Dynamic Drivers & BIOS Management with Total Control Part 2 for a downloadable Task Sequence Template for the following Task Sequence.

When converting from BIOS to UEFI, it is best to do this after the system has been upgraded to Windows 10. The version of Windows 10 does not matter, although, it should be a version that is still supported. Also, even though MBR2GPT will run in the full OS (starting with Windows 10 1703), it is a best practice recommendation to run it from WinPE (version 1703 or later). The reason for this is that there can be other applications on the system that use filter drivers for disk access (antivirus, antimalware, 3rd party disk encryption and other 3rd party p2p solutions). These applications could interfere with the disk conversion and potentially cause a failure, therefore, always run MBR2GPT in WinPE for best results.

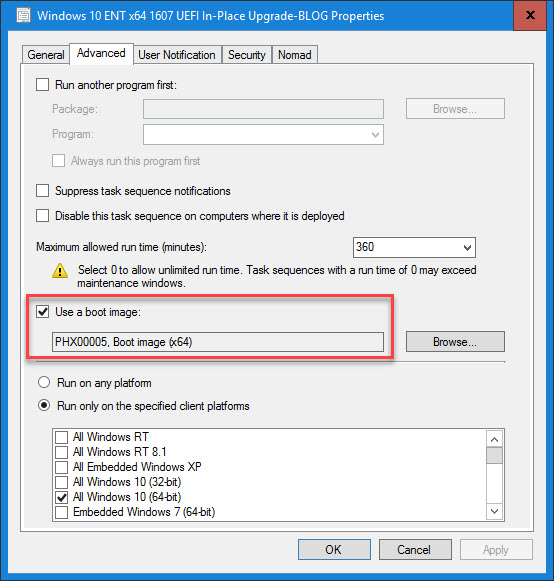

Typically, a Boot Image is not assigned to an In-place Upgrade Task Sequence. However, since we are going to use WinPE as part of our Task Sequence, a WinPE 1703 (or later) Boot Image should be assigned to the Task Sequence. Also, it is important to use the 64-bit Boot Image when running on a 64-bit UEFI System.

The basic flow goes like this after the OS has been upgraded:
Disable BitLocker
Set BIOS and Secure Boot Variables
Restart into WinPE (if running Legacy BIOS)
BIOS to UEFI
Run MBR2GPT (if running Legacy BIOS)
Configure BIOS Firmware Settings
Restart into Windows
Re-enable BitLocker

If you are not using BitLocker, then you can skip the two BitLocker groups. Also, even though this process works with BitLocker using earlier algorithms, if you are coming from a version of Windows before Windows 10 1511 (like when coming from Windows 7), then you might want to consider the new encryption type AES-XTS (see the blog BitLocker: AES-XTS new encryption type for more information). Moving to the new encryption type will require decryption/re-encryption of the drive.

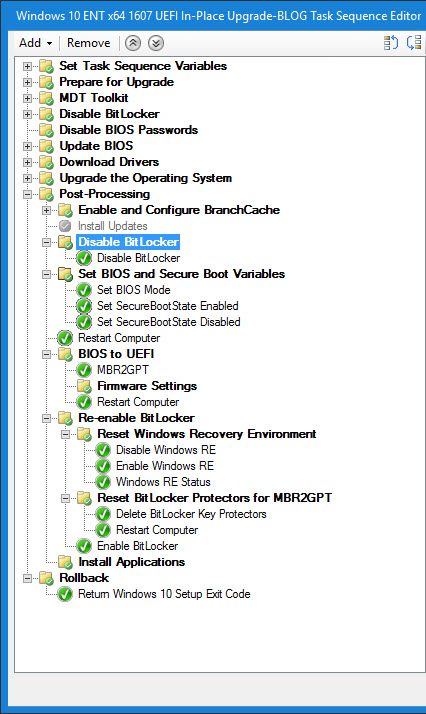

Disable BitLocker

The reason for putting this Group in after the OS has upgraded is to cover the scenario when coming from Windows 7. As I mentioned in my blog How to detect, suspend, and re-enable BitLocker during a Task Sequence, the built in Disable BitLocker Task Sequence step on suspends BitLocker for one reboot. Therefore, I run this Group one more time just incase BitLocker was re-enabled after the In-place Upgrade.

Set BIOS and Secure Boot Variables

I cover these steps in detail in the two blogs mentioned above, but the two variables that get used in the BIOS to UEFI Group are BIOSMode and SecureBootState.

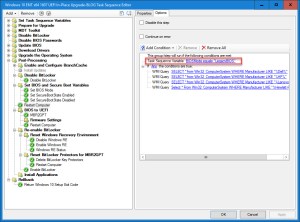

Restart into WinPE (if running Legacy BIOS)

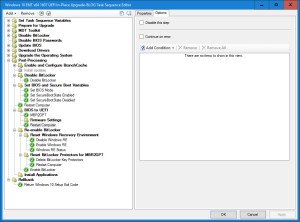

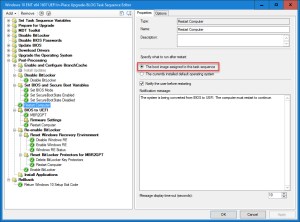

On this step, we only need to reboot if the system is running in Legacy BIOS Mode. If it is running in UEFI Hybrid or UEFI Native without Secure Boot, the disk will already be configured for GPT. On the Options tab, add the condition: Task Sequence Variable BIOSMode equals “LegacyBIOS” (Note: you could also use _SMSTSBootUEFI equals FALSE, but having LegacyBIOS is easier to find in log files, status messages and is easier for help desk personal to understand). Also add the hardware manufacturers that you want to support. This is important because you cannot convert BIOS to UEFI on a GEN 1 Hyper-V VM and you will probably want to test the rest of the Task Sequence on a VM outside of the BIOS to UEFI steps.

BIOS to UEFI

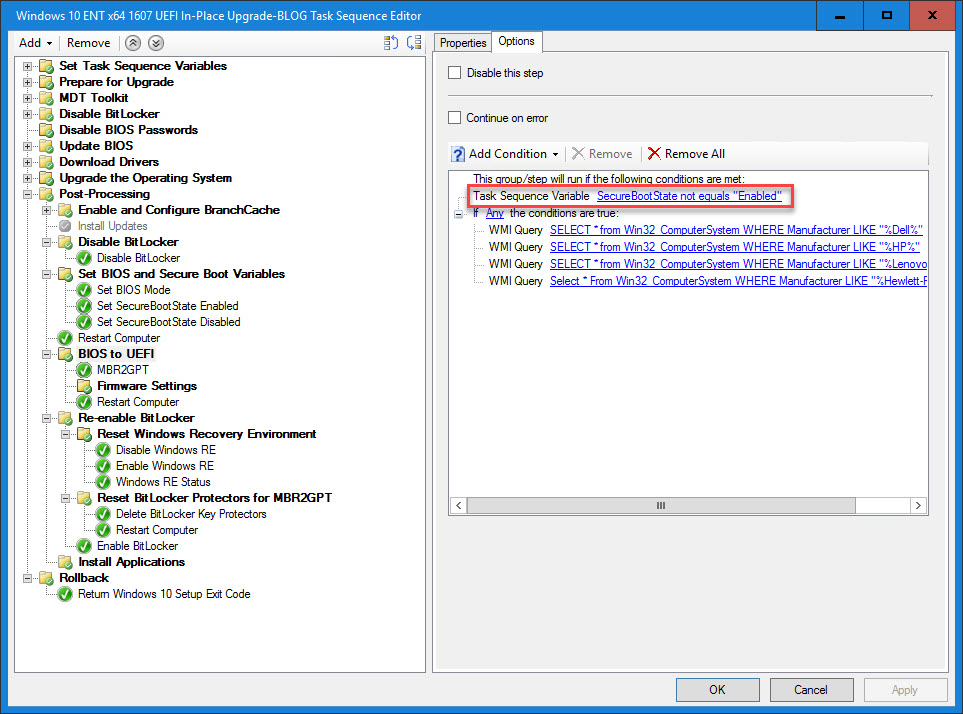

On this Group, we only need to perform BIOS to UEFI or BIOS Firmware Settings if the system is running Legacy BIOS, UEFI Hybrid or UEFI Native without Secure Boot. On the Options tab, add the condition: Task Sequence Variable SecureBootState not equals “Enabled”. Once again, also add the hardware manufacturers that you want to support.

MBR2GPT (if running Legacy BIOS)

I like to run this step prior to configuring the BIOS settings. Secure Boot can be programmatically enabled, however per the specification it cannot be programmatically disabled. If you enable Secure Boot prior to running converting the disk and MBR2GPT is not able to convert the disk for some reason (like too many MBR partitions, see my blog Configuration Manager OSD, Recovery Partitions and MBR2GPT), then the machine will require a desk side visit to reset the BIOS settings and manually disable Secure Boot.

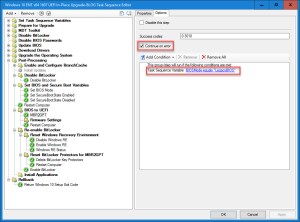

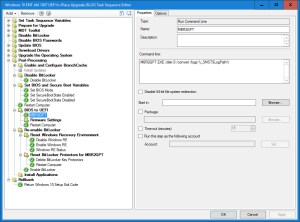

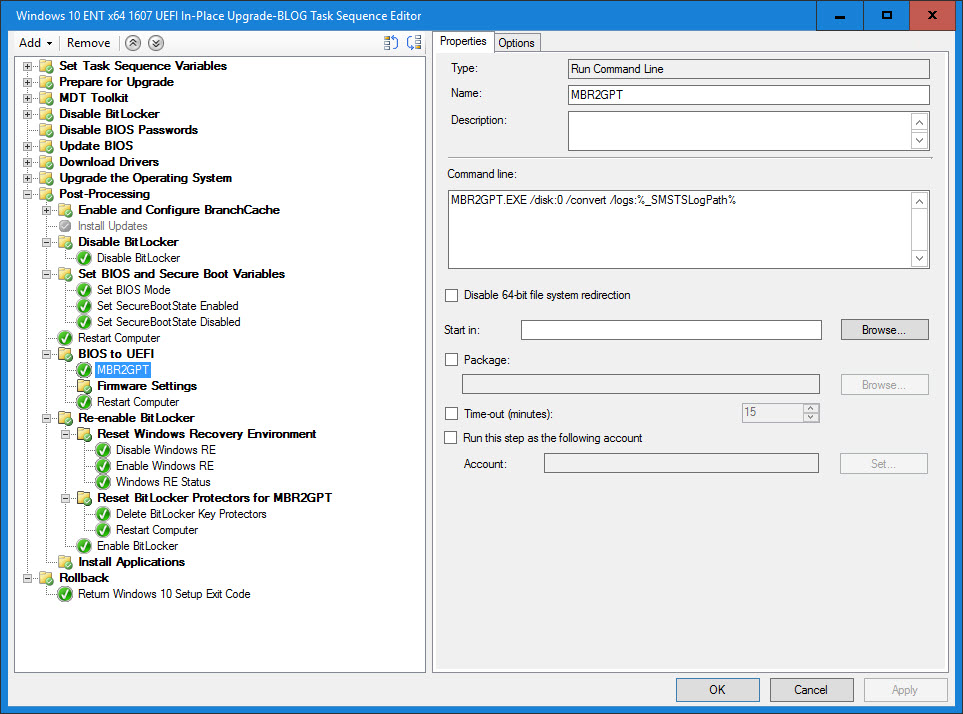

This step will run under WinPE. MBR2GPT can be called directly using a Run Command Line step since it is in the path in WinPE. If dealing with systems that do not install the OS on disk 0, then you will need to create multiple steps and put the necessary conditions on each. MBR2GPT will generate useful log files and I like to save them in the Task Sequence log directory (_SMSTSLogPath). This way they will be available after the Task Sequence runs. On the Option tab, add the condition: Task Sequence Variable BIOSMode equals “LegacyBIOS. This will ensure that this step only runs under this condition. Note: we could have also used and/or added _SMSTSinWinPE equals “TRUE”. Also enable Continue on error. This is important because we do not necessarily want the entire In-Place Upgrade to fail just because MBR2GPT was not able to run. If it is a hard failure, then the Task Sequence will definitely not continue as the system will probably no longer boot up.

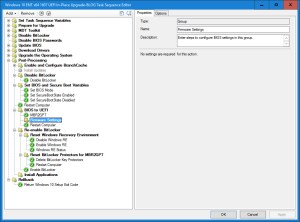

Configure BIOS Firmware Settings

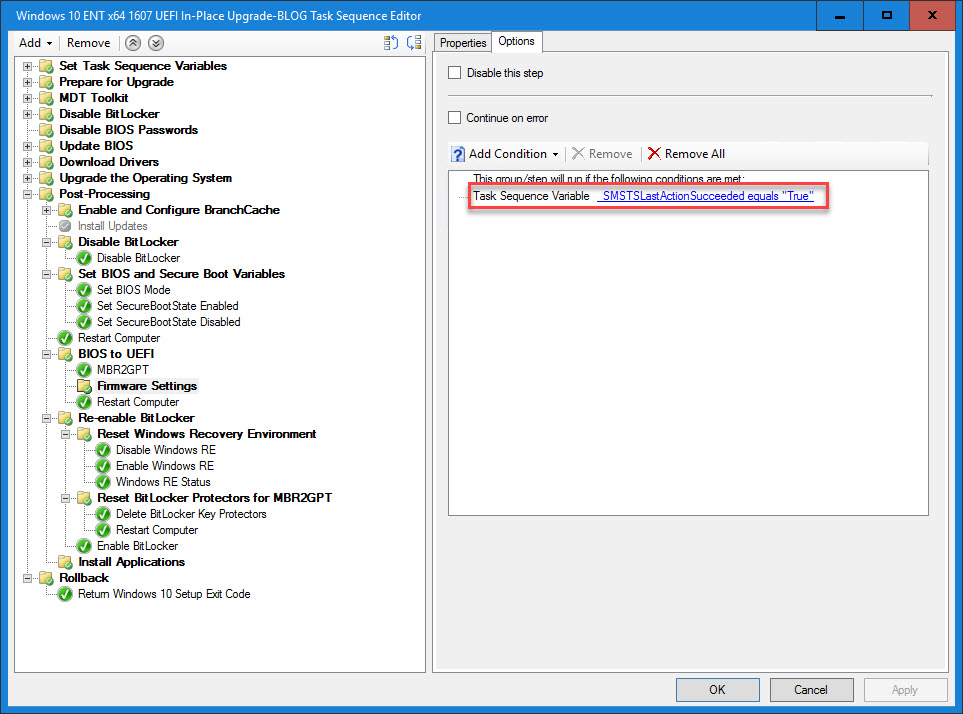

In the Firmware Settings Group, you will add your own BIOS settings commands, utilities or tools. These commands, utilities and tools can run in a full OS or WinPE. If you use Dell systems, please see my previous blog post Automating Dell BIOS-UEFI Standards for Windows 10 for the commands (and order) of switching the UEFI settings using the Dell CCTK (aka Command Monitor). On the Option tab, add the condition: Task Sequence Variable _SMSTSLastActionSucceeded equals “TRUE”. This will ensure that this group is only entered if the previous step that runs was successful. In the case of a Legacy BIOS system, if MBR2GPT is not successful, we want the Task Sequence to continue, but we do not want to flip the BIOS settings to UEFI and enable Secure Boot. In the other case of a system running UEFI Hybrid or UEFI Native without Secure Boot, it will run if the previous non-skipped step was successful. NOTE: It is important to be running the latest BIOS version and BIOS utilities for best results. Also, be sure to account for BIOS passwords if used in your environment. It is best to disable the BIOS passwords and then re-enable them at the end of the process.

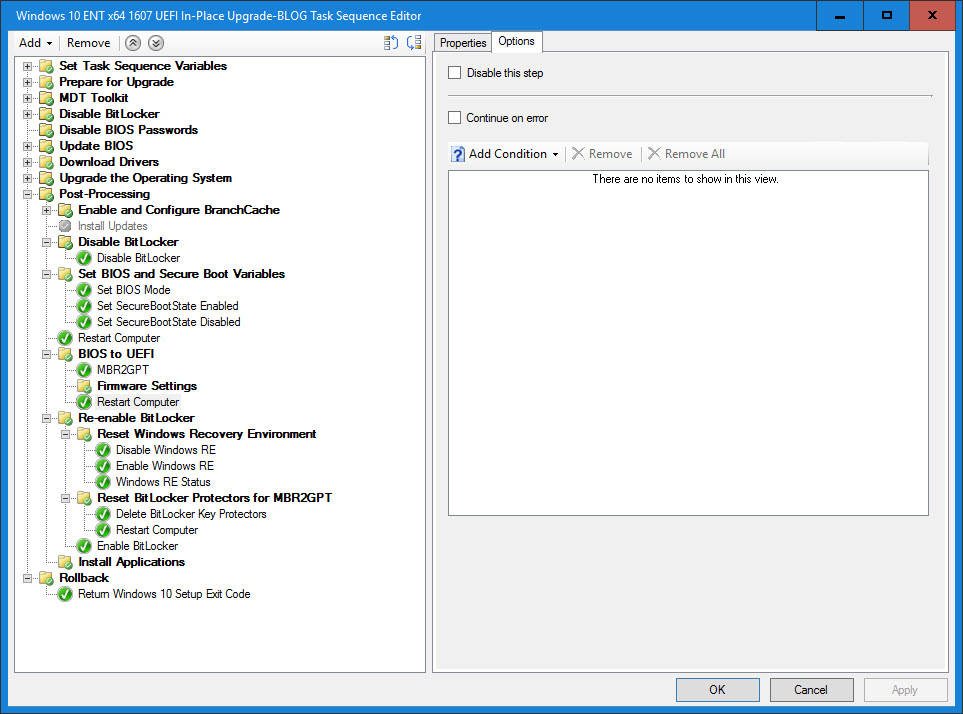

Restart into Windows

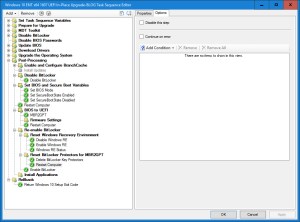

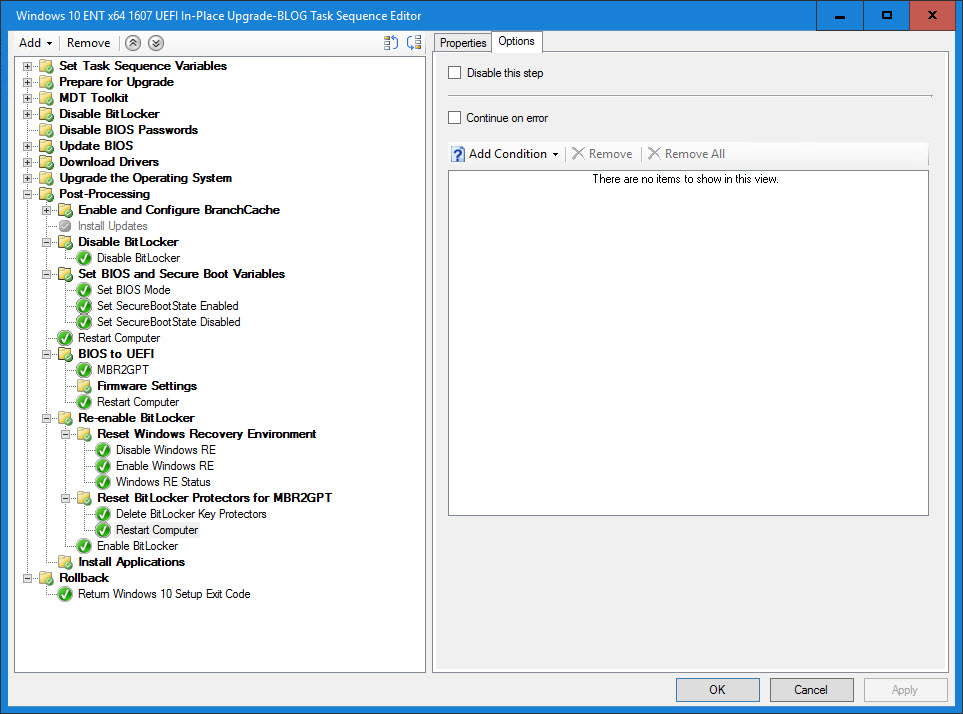

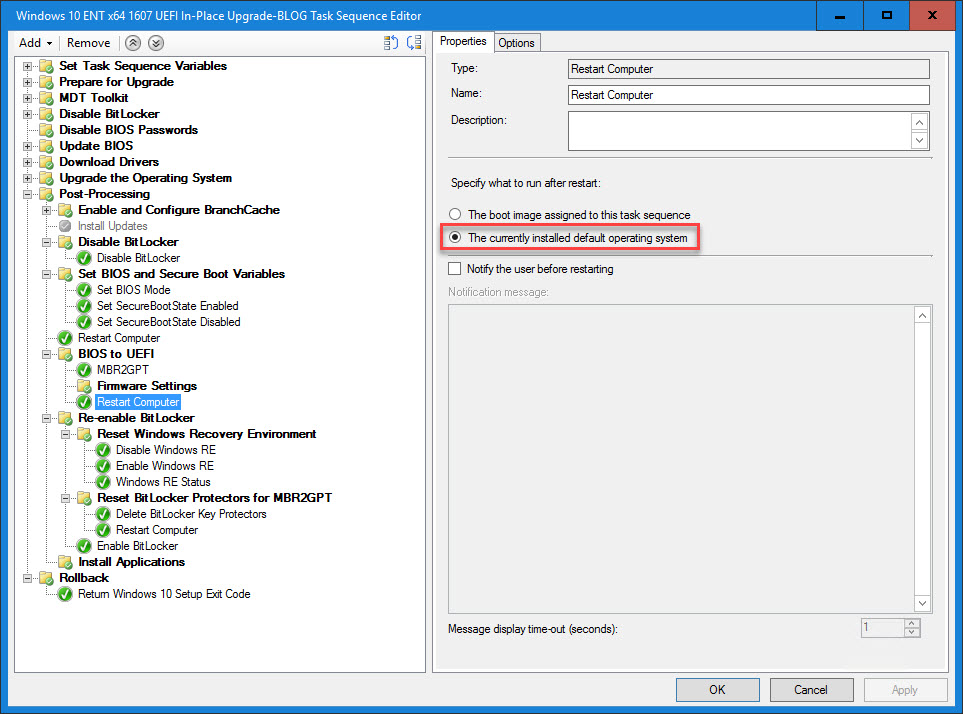

After the Firmware Settings are changed, a system reboot is required for them to be applied. This restart will boot the system back into Windows 10.

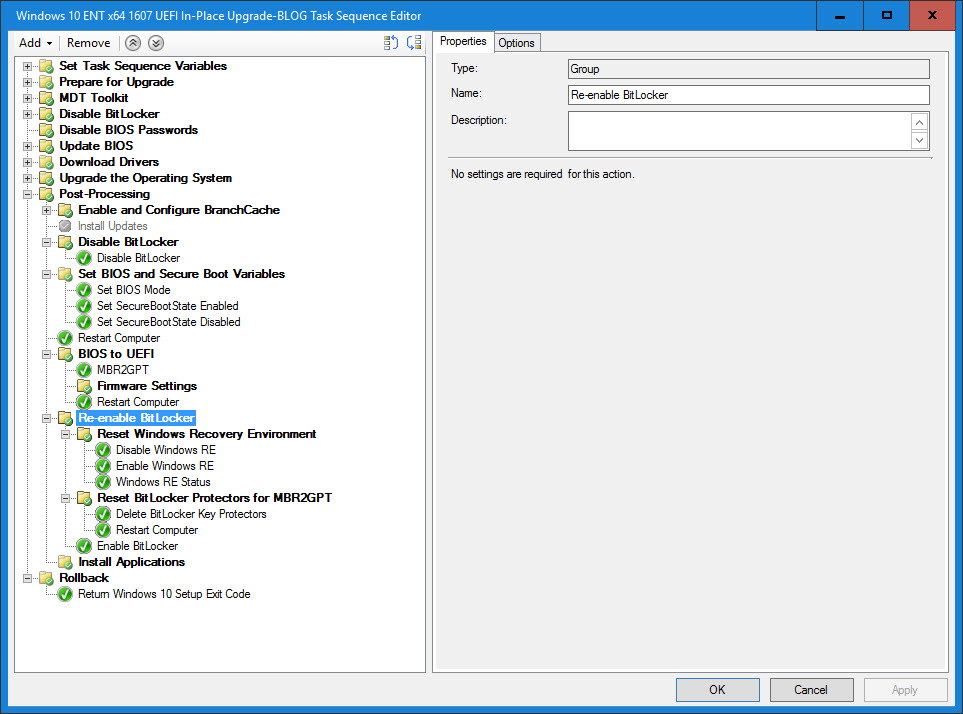

Re-enable BitLocker

Once the system has been configured for UEFI Native with Secure Boot and booted back up into Windows 10, it is time to re-enable BitLocker. The Re-enable BitLocker Group will run in a full OS and only if the OSDBitLockerStatus equals “Protected”. This variable gets set earlier in the Task Sequence before the operating system is upgrade. For more information, see my blog How to detect, suspend, and re-enable BitLocker during a Task Sequence.

MBR2GPT and BitLocker

If you read the Microsoft documentation for using MBR2GPT, they only tell you that you need to delete the existing protectors and recreate them (they don’t mention that you need to reset the Windows Recovery Environment to generate a new reagent.xml and update the bcd). They do not really give any clear guidance on how to do this.

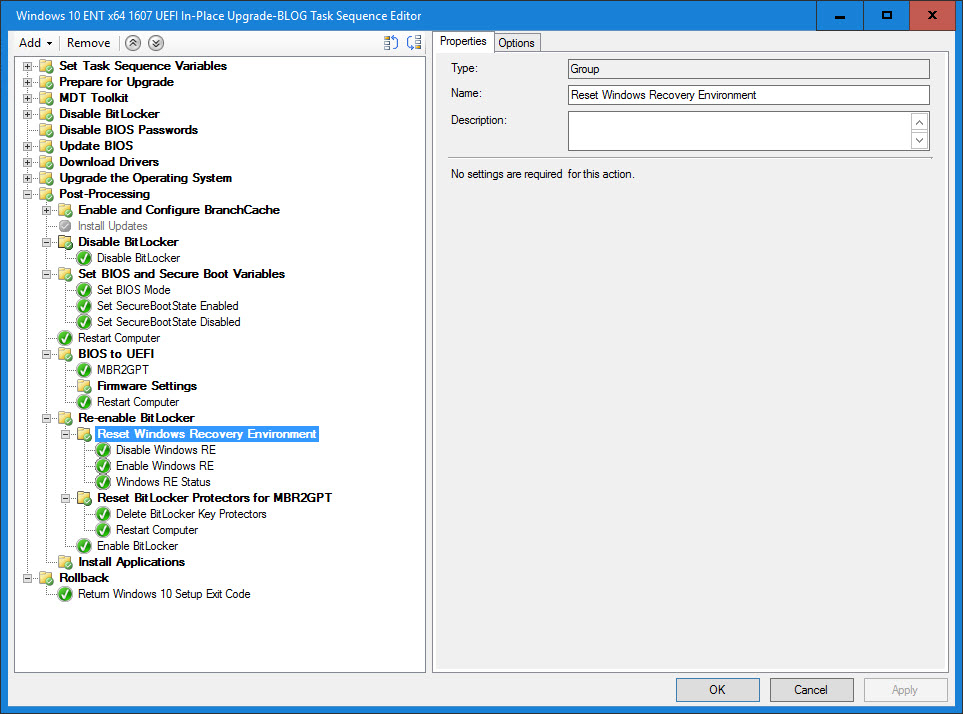

Reset Windows Recovery Environment

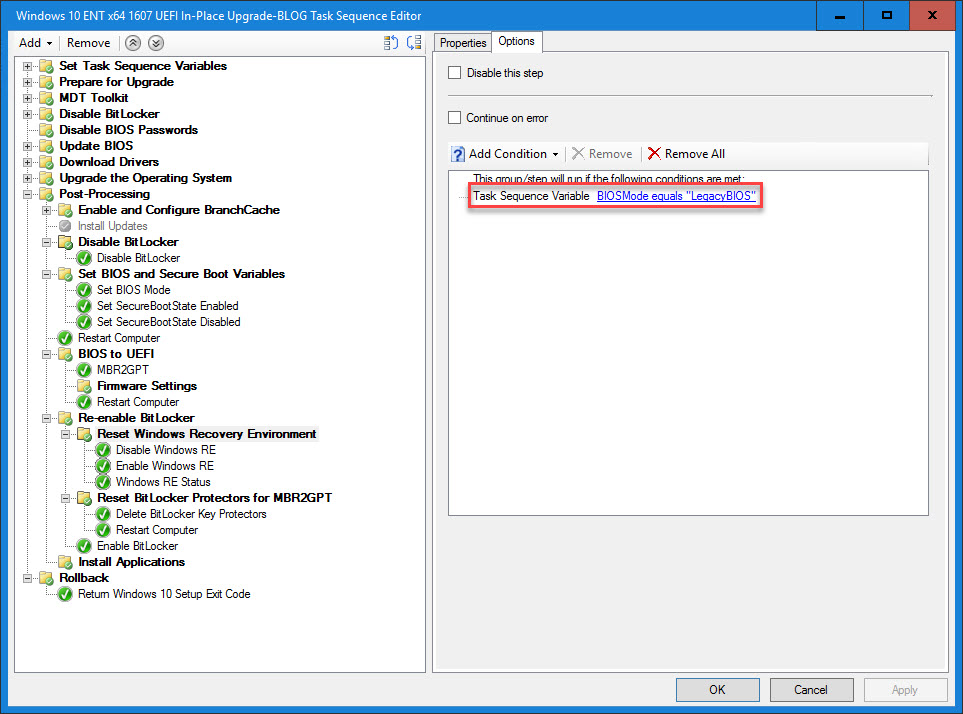

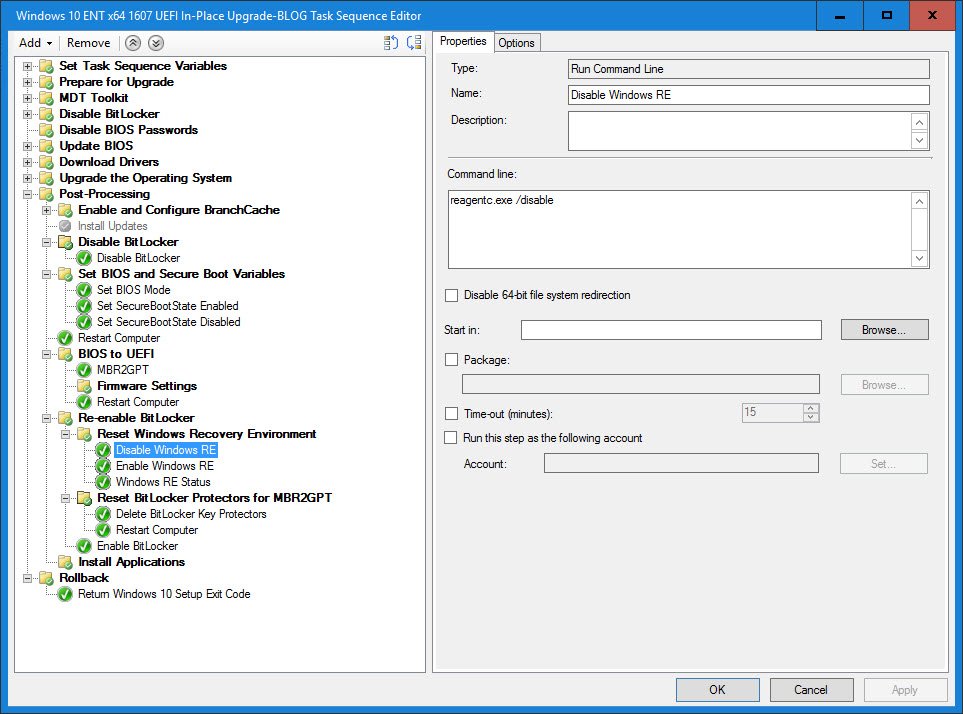

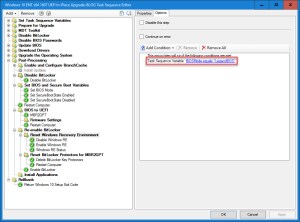

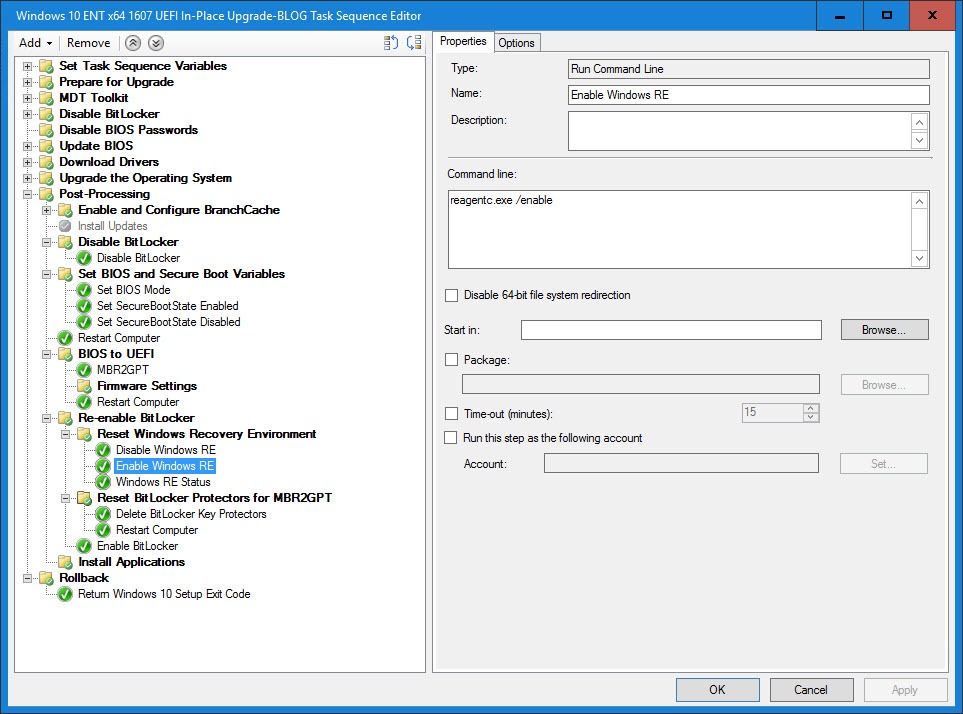

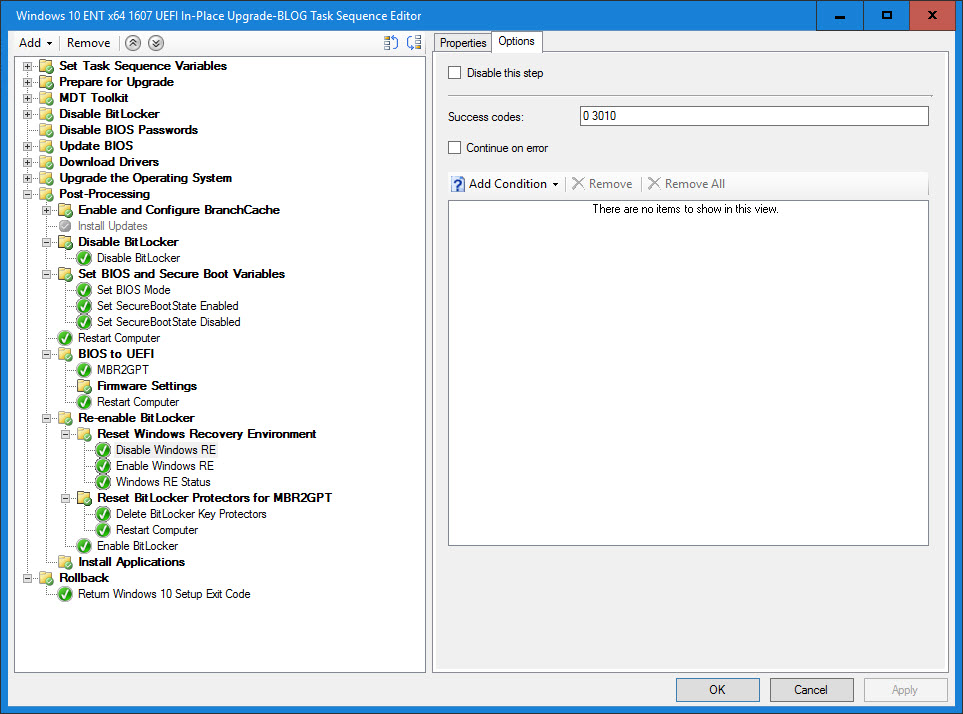

Resetting the Windows Recovery Environment only needs to be done when using MBR2GPT with BitLocker. On the Option tab, add the condition: Task Sequence Variable BIOSMode equals “LegacyBIOS”.

I have seen some forum posts on the internet that talk about deleting the ReAgent.xml file (found in C:Windows\System32\Recovery). Windows will re-create this file on the next reboot and it should modify the bcd file accordingly. However, I prefer to update it (and the bcd) by simply disabling WinRE and re-enabling it. I also display the status after re-enabling it. Each of these commands will pipe output to the smsts.log and also CM Status Messages. For clarity they are split in three different steps.

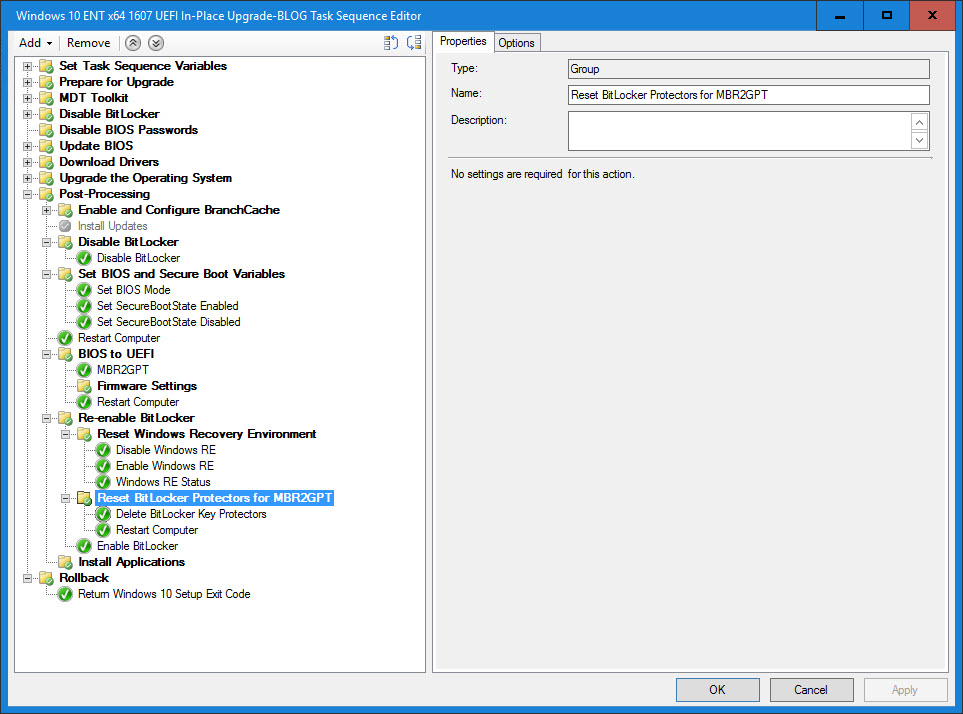

Reset BitLocker Protectors for MBR2GPT

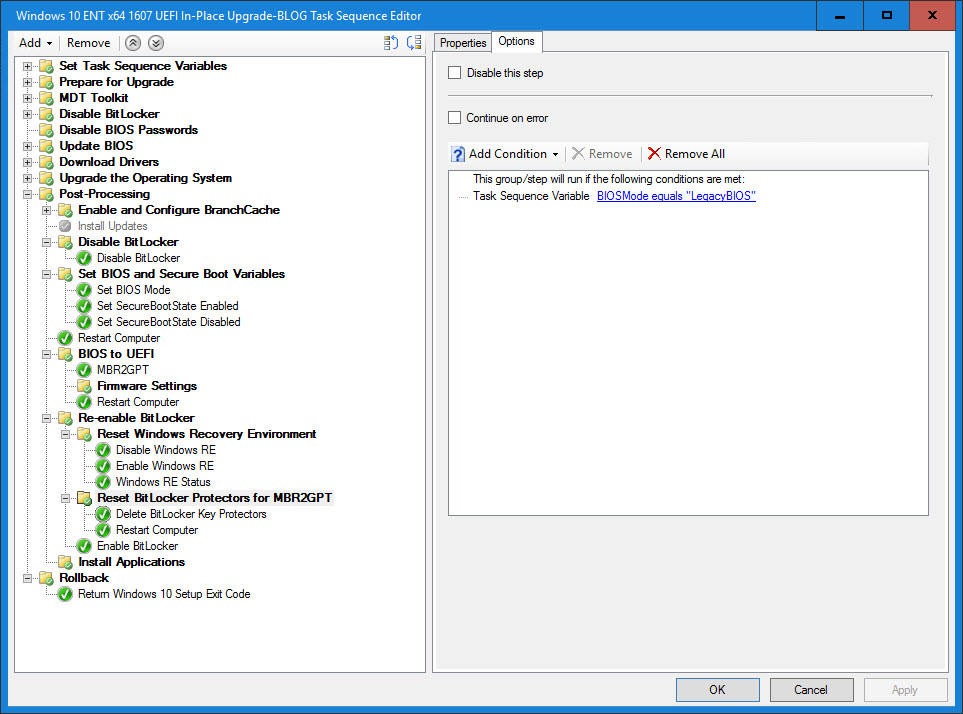

Just like Resetting the Windows Recovery Environment, resetting the BitLocker Protectors only needs to be done when using MBR2GPT with BitLocker. On the Option tab, add the condition: Task Sequence Variable BIOSMode equals “LegacyBIOS”.

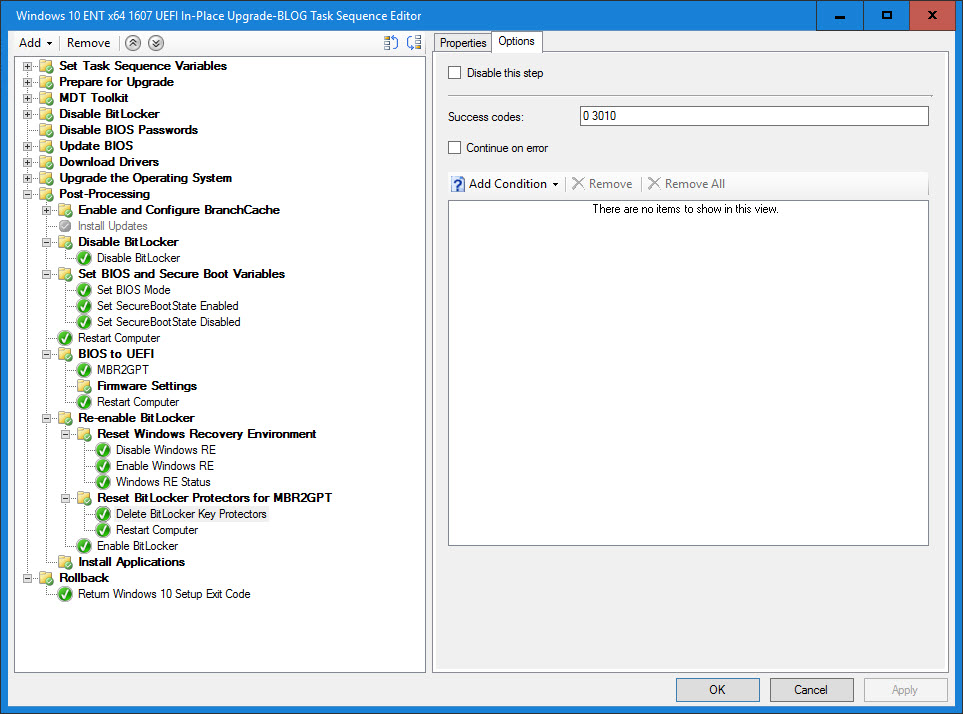

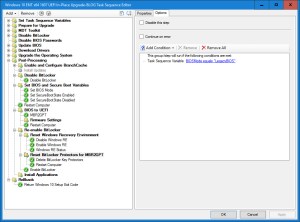

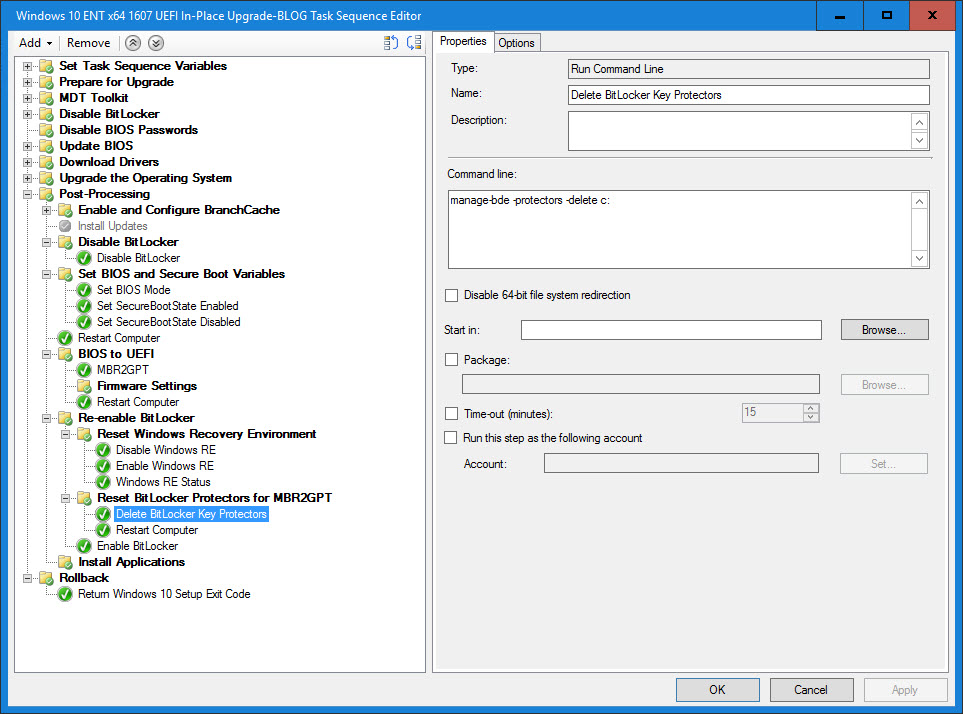

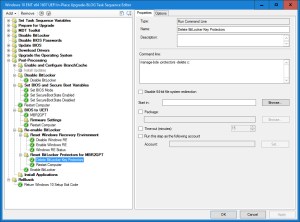

Now we just need to delete the BitLocker protectors. This can be done by running the following command: manage-bde -protectors -delete c:

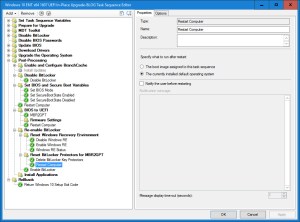

It is extremely important to perform a restart after deleting the BitLocker protectors and before enabling BitLocker. If it is not done in this order, the system will prompt for the BitLocker recovery key on the next reboot.

Enable BitLocker

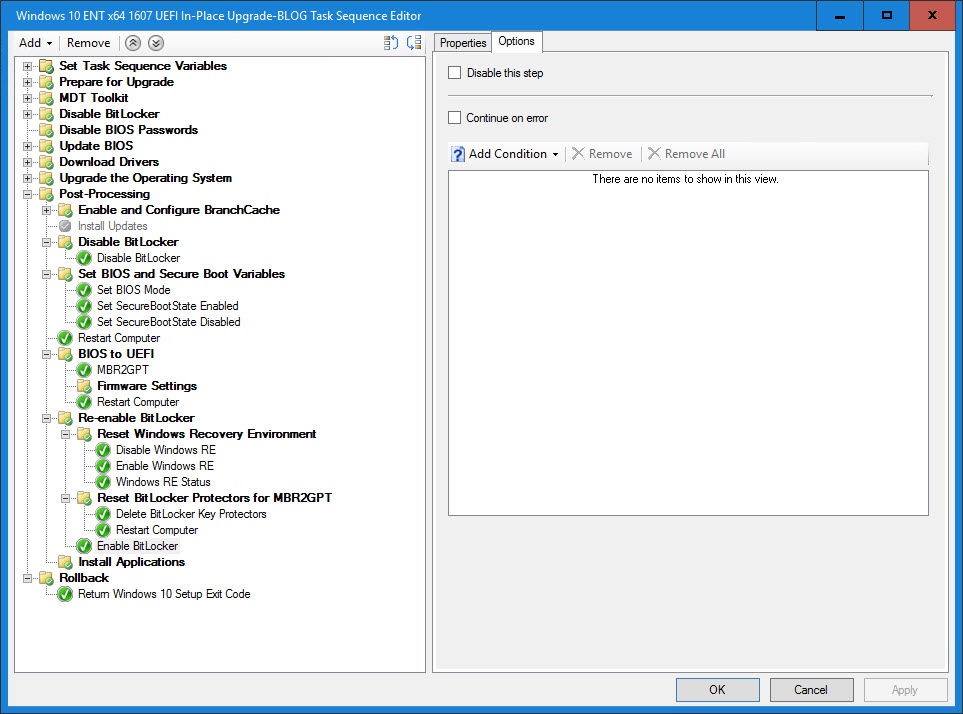

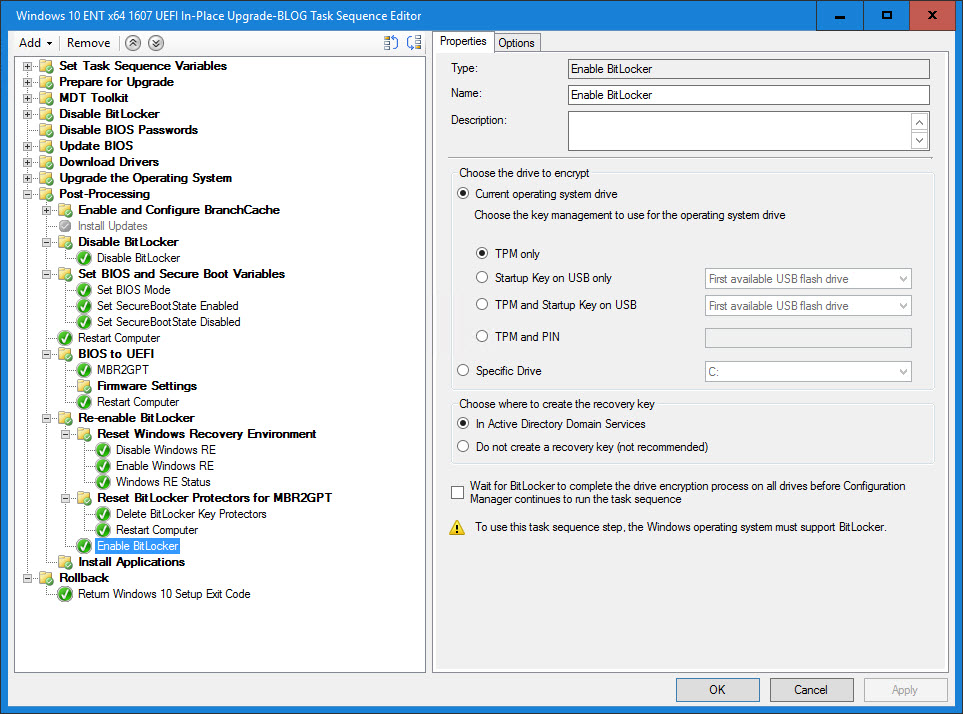

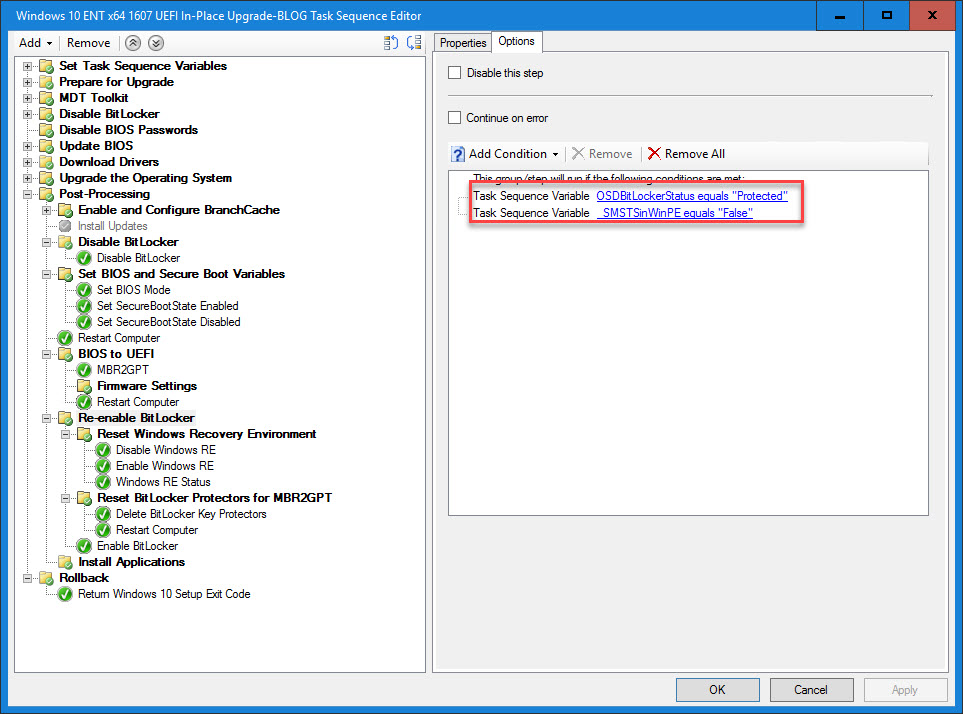

The last thing to do in the Re-enable BitLocker Group is to enable the BitLocker protectors. This can be done using the native Enable BitLocker Task Sequence step. Since the operating system drive is already encrypted, just the BitLocker protectors are being created and/or enabled (depending on the scenario).

In summary, this approach will cover multiple upgrade scenarios, including BIOS to UEFI, when performing an in-place upgrade to Windows 10.
